OG3 Oval Gear Flowmeters

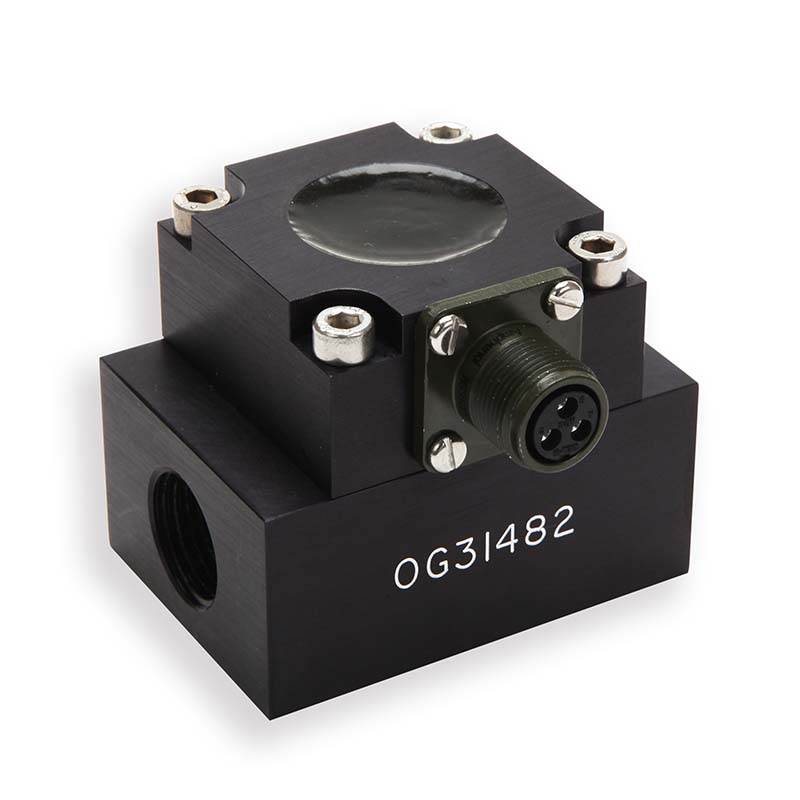

The compact OG3 oval gear liquid flowmeter gives high performance, excellent chemical resistance and has high viscosity options available for liquids above 1000cSt. This oval gear flow sensor has a standard flow range from 0.05 to 10 L/min on 30 cSt oil and 0.5 to 10 L/min on water-like liquids. With variable high pressure models up to 700 bar in standard 316 Stainless Steel with Viton™ ‘O’ ring seal and a standard ½” process fitting size, options for Aluminium or PEEK materials and sensors suitable for hazardous areas are available. For OEM applications other alternatives are available, including high pressure options and manifold mountings.

Download the OG3 Datasheet

Would you like some advice?

If you would like some help selecting a Flowmeter, our experienced team are always happy to help.

Search for other Flowmeters:

SKU N/A Category

Description

OG3 Oval Gear Flow Meters Are Ideal for:

  • Engine test
  • Critical oil flow
  • High viscosity liquids
  • OEM equipment
  • Hazardous areas
  • Batching

Features:

  • Excellent chemical resistance
  • Rugged construction
  • Individual calibration
  • High viscosity options
  • Low pressure drop
  • No flow conditioning required
  • Compact meter assembly
  • Hall, reed switch or Namur sensor
  • Accuracy
    • 0.5% FSD water
    • 1.0% reading oil (30 cSt)
  • 0.1% repeatability
  • IP65/NEMA 4 protection

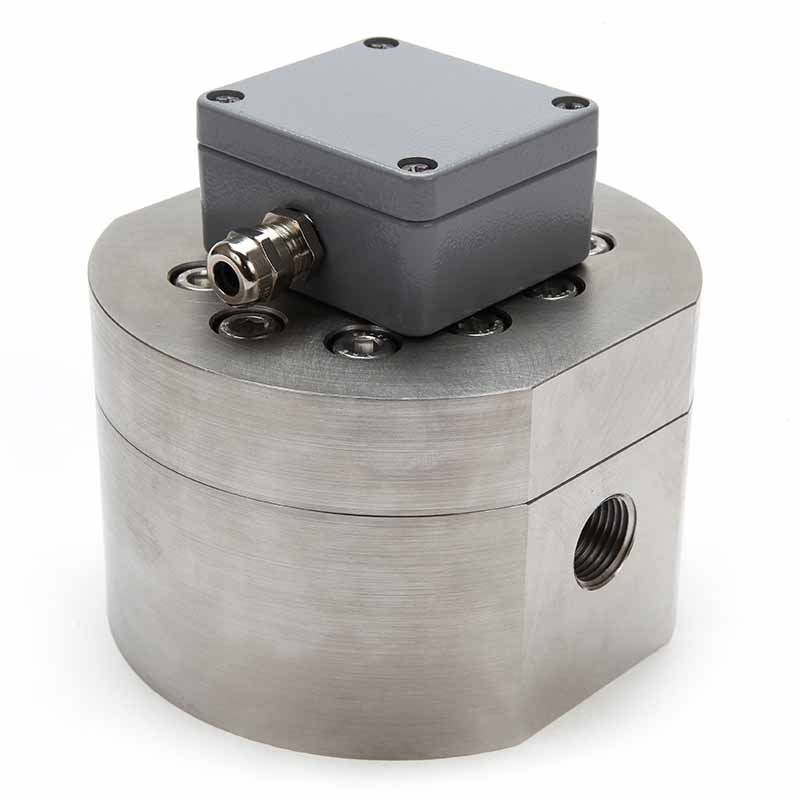

  • High Pressure Models to 700 Bar

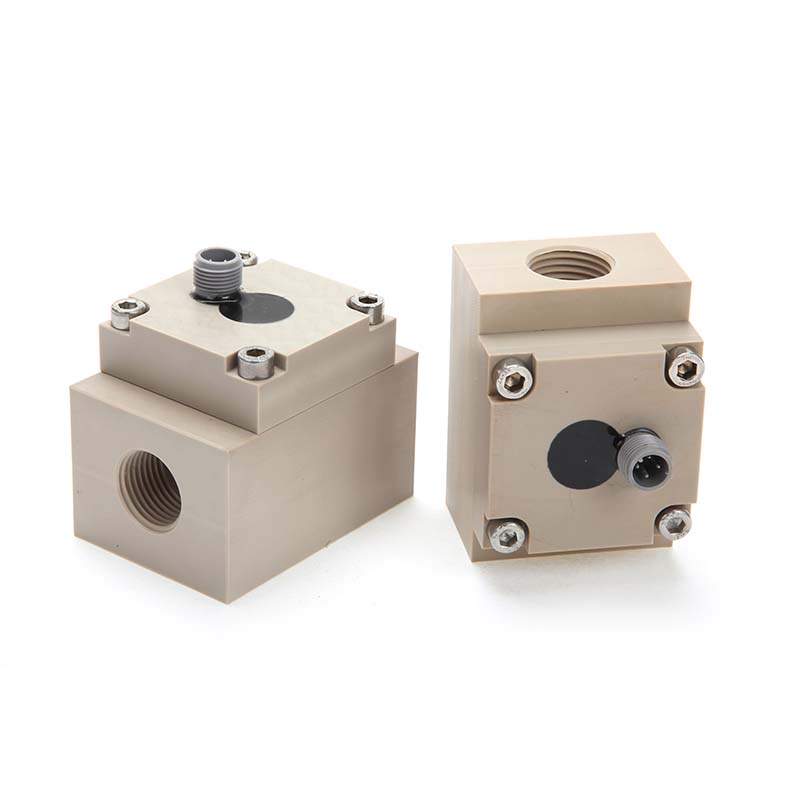

  • Non-metallic option

Additional information

Body Material

, ,

Detector Type

, , ,

Model

Pressure Rating

, , ,

Process Fitting Size

Process Fitting Type

,

Seal Material

, , , ,

Temperature Rating

, ,
