1000-Series Mini Turbine Flow Meters

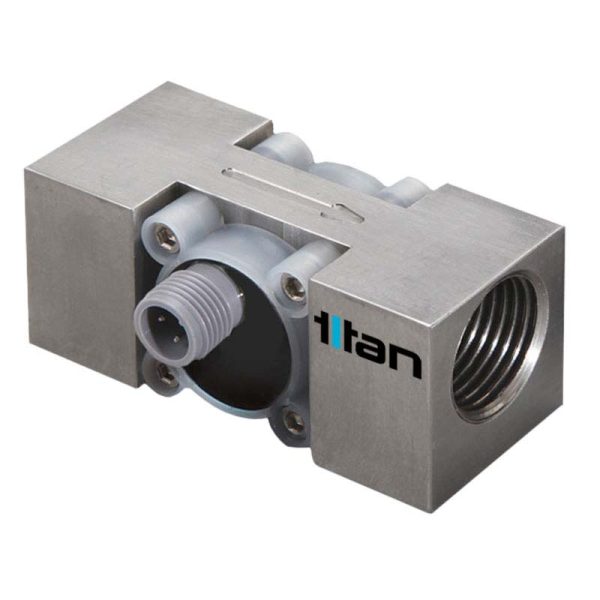

The 1000 series turbine type flow meter is designed to give high performance and competitive pricing with 7 flow ranges from 0.05 to 30 L/min. Its choice of body materials makes this the ideal choice for the metering of aggressive chemicals, including ultra-pure water. The standard inlet is a ½” BSPF although for OEM use alternatives are available. The bearings are made of sapphire for long life and reliability, the body is either PVDF or 316 stainless steel and as standard the ‘O’ ring seal is Viton™.

Download the 1000 Series Flowmeter Datasheet

Would you like some advice?

If you would like some help selecting a Flowmeter, our experienced team are always happy to help.

Search for other Flowmeters:

SKU N/A Category

Description

The 1000 Series Turbine Flow Meter is Ideal for:

  • Batching
  • Chemical dosing
  • Laboratory tests
  • Cooling equipment
  • Active flow alarms
  • Semiconductor plant
  • Engine test
  • OEM applications

Features:

  • Low cost
  • PVDF or St St Body
  • 1- 2% FSD
  • Sapphire bearings
  • Hall Effect sensor
  • 7 Flow ranges
  • Pulse output (NPN Standard; PNP Option)
  • 10 bar pressure rating (40 bar option)
  • Viton™ seal as standard
  • 0.1% Repeatability
  • 4.5 to 24 Vdc
  • -25°C Min to 125°C Max
  • IP65

Additional information

Body Material

,

Calibration

,

Flow Range

, , , , , ,

Output Options

,

Pressure Rating

,

Seal Material

, , ,
